P-016. ParaKenguru Complex NEW

Description

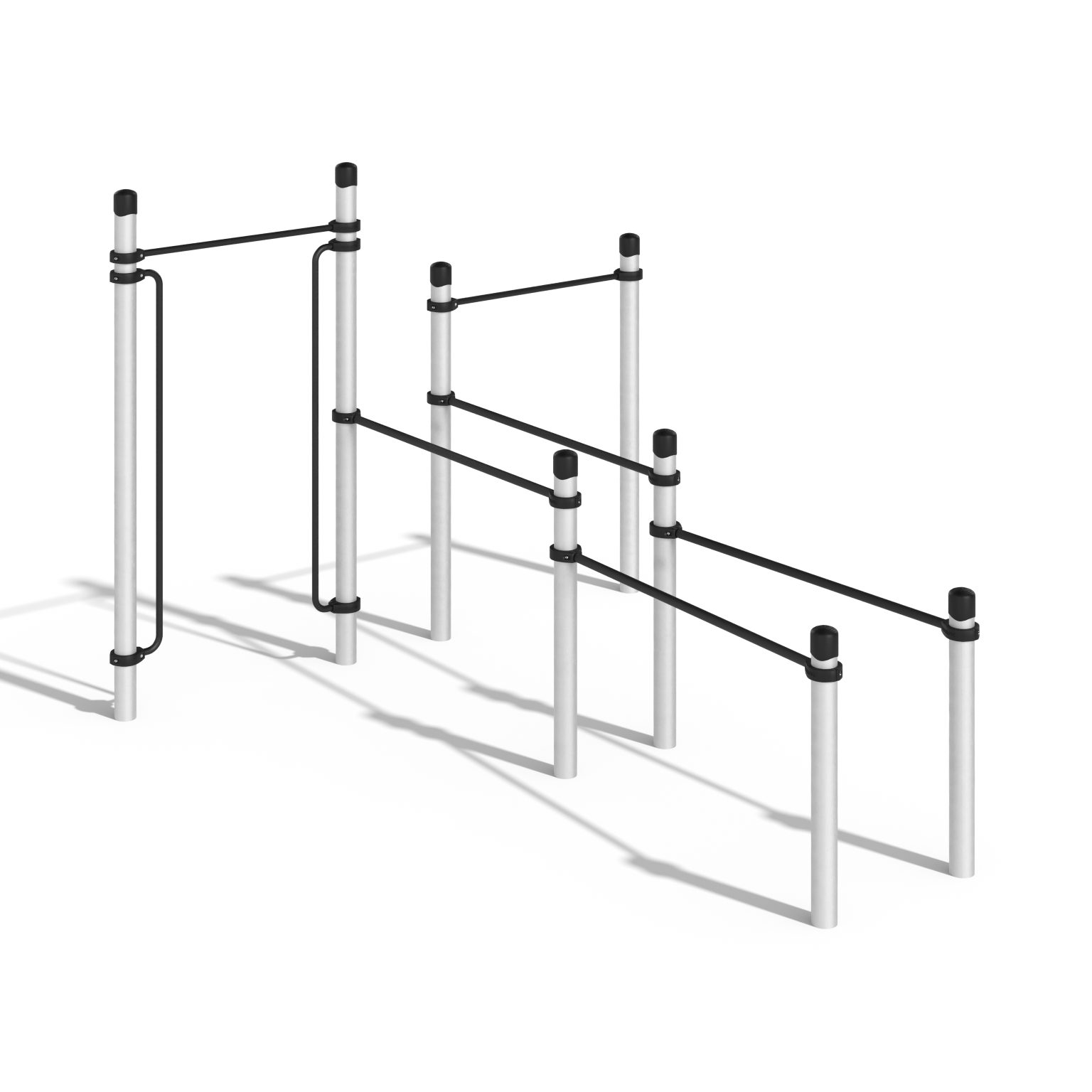

The complex consists of eight vertical columns at the height of: 2300 mm – 2 pieces, 2000 mm – 2 pieces, 1400 mm – 2 pieces, 1100 mm – 2 pieces. The complex includes two-level parallel bars, two pull-up bars, and climb-down bars. Distance between various-width parallel bars – 808mm at one end, and 608 mm at the other end, length of bars – 1790 mm, bar diameter 48 mm, bar height – 1100 mm. Parallel bar diameter 48 mm, length – 1790 mm, height – 1400 mm. Crossbar length: 2 pieces – 1200 mm, diameter 34 mm, crossbars are fixed at different heights – 1800 mm and 2200 mm. Climb-down bar length – 1932 mm, diameter 34 mm. All bars and sections are fixed to backup columns by means of collars.

Specifications

Vendor code: P-016

Color: RAL 7016

Dimensions: 3332 мм X 3901 мм

Weight: 244.2 kg
